Our Facilities

The 132,500 sq. ft. climate-controlled Lincoln Electric Automation facility in Coldwater features three (3) large assembly bays and a machine shop with over 40 machine tools. In addition, we have a Solid State Joining Center and Materials Evaluation Testing (MET) lab dedicated to support our customer’s friction welding and refill friction stir spot welding R&D and prototyping needs for joining of lightweight and dissimilar materials. Coldwater has a quality department with three (3) CMMs to support our internal machining needs as well as our customer’s build-to-print and part validation requirements.

Contact Us Today

Featuring

  • 132,500 sq. ft. facility located on 19 acres
  • Ten (10) overhead crane systems up to 25-tons
  • Fully climate-controlled building for precision machining
  • Factory floor is laid out in three (3) x 60-ft x 660-ft. crane bays

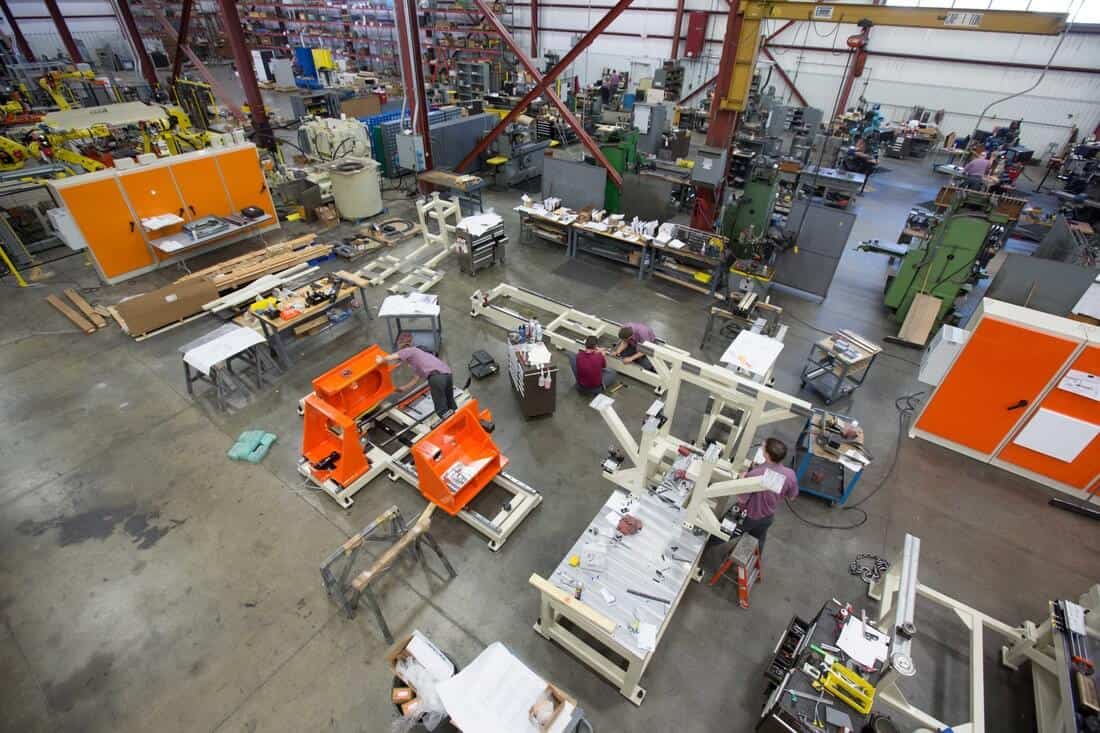

  • Large manufacturing area to support complete line setups and builds
  • Inspection and test
  • Solid State Joining Center with MET Lab

Major Equipment Listing

100 – SAWS “Y” & “X” Travel Height Table Wt. Cap. Spindle RPM Notes
102 Marvel Vertical Band Saw           Saw Area
103 Doall Vertical Countour Band Saw           Tool Room
104 Doall Vertical Countour Band Saw           Tool Room
106 Marvel Vert Band Saw           Saw Area (Automatic)

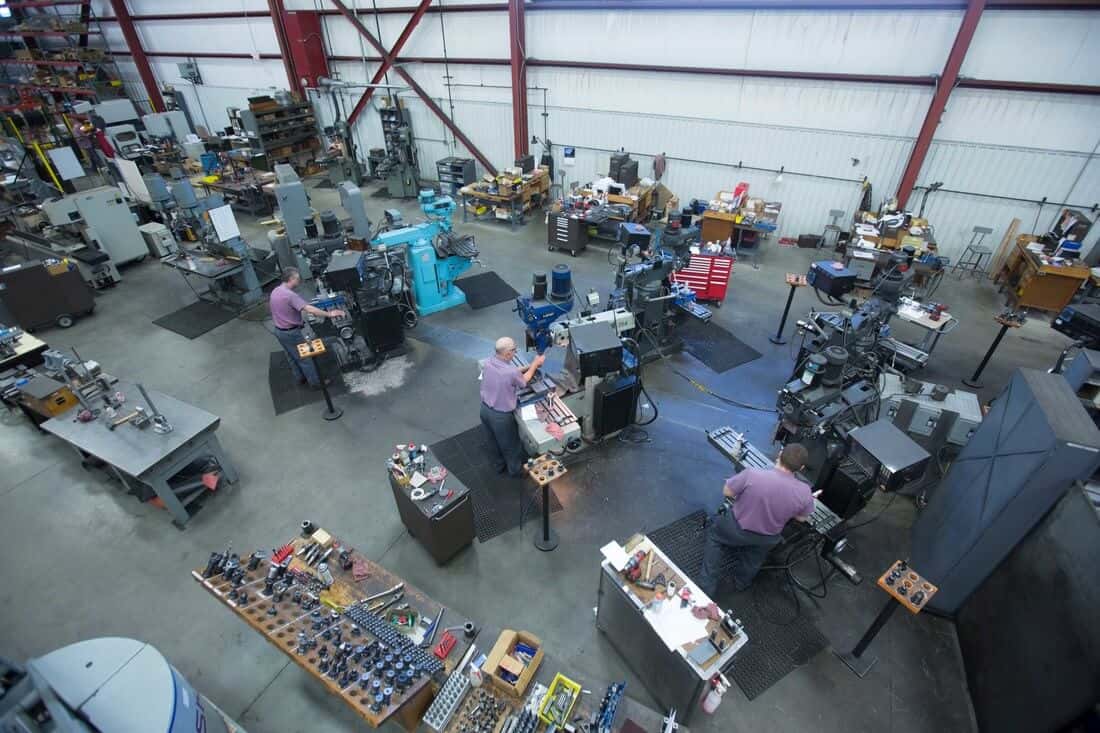

200 – KNEE-Type VERTICAL MILLS “Y” & “X” Travel Height Table Wt. Cap. Spindle RPM Notes
211 Lagun CNC 14 x 26 12 10 x 45 750
212 Lagun CNC 14 x 26 12 10 x 45 750
213 Lagun CNC 17 x 32 20 11 x 50 1200
214 Lagun CNC 17 x 32 20 11 x 50 1200
215 Lagun CNC 14 x 26 12 10 x 45 750
216 Lagun CNC 14 x 26 12 10 x 45 750
217 Willis Accurite CNC 17×32 20 12×50 1100
218 Willis Accurite CNC 17×32 20 12×50 1100

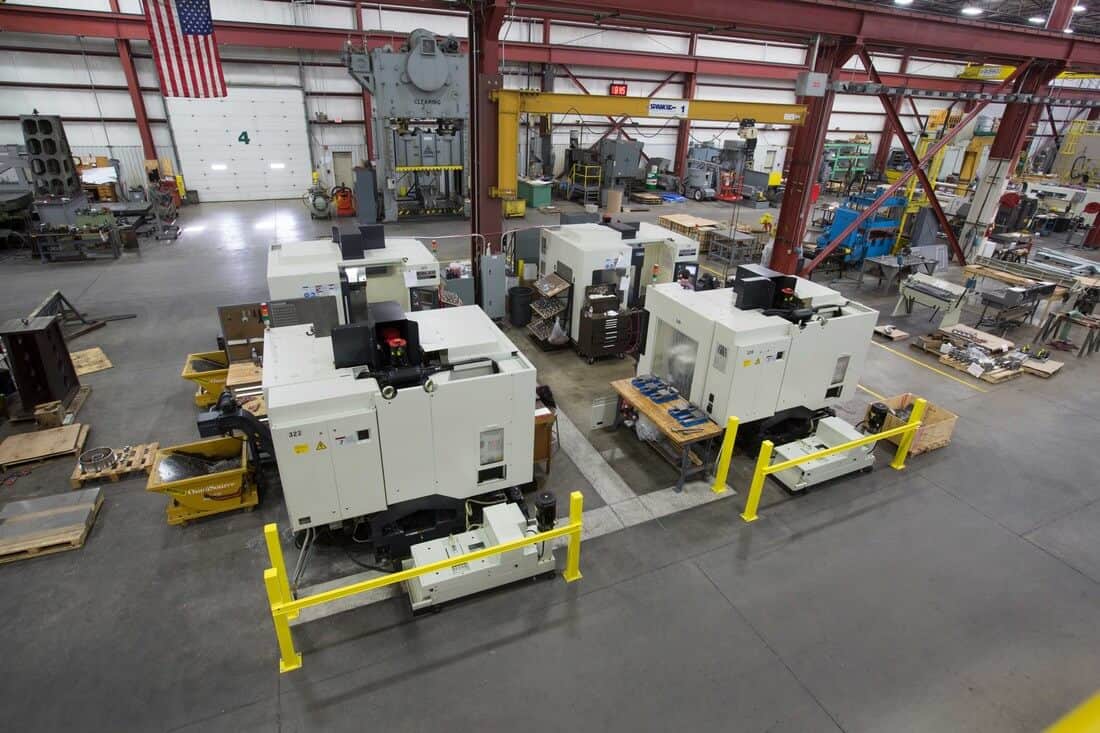

300 – VERTICAL MACHINING CENTERS “Y” & “X” Travel Height Table Wt. Cap. Spindle RPM Notes
305 Enshu VMC EV530Y 20 X 32 20 21.5 X 43 2,200 lbs. 6,000
306 Okuma VMC MX 55 VB 22 X 41 24 22 X 51 1,500 lbs. 6,000
308 Eumach DM3000P CNC Bridge Type VMC 70 X 125 35 67 X 118 18,000 lbs. 6,000
313 Hurco VMX 64-50T 34 X 64 36 35 X 66 6,000 lbs. 8,000
314 Yama Seiki VBM-1600 31.5 x 63 31.5 66.9 X 31.5 4,400 lbs. 6,000
315 Yama Seiki VP-2012 47.2 X 78.7 31.5 78.7 X 43.4 7,700 lbs. 6,000
316 Yama Seiki VBM-1600 31.5 X 63 31.5 66.9 X 31.5 4,400 lbs. 6,000

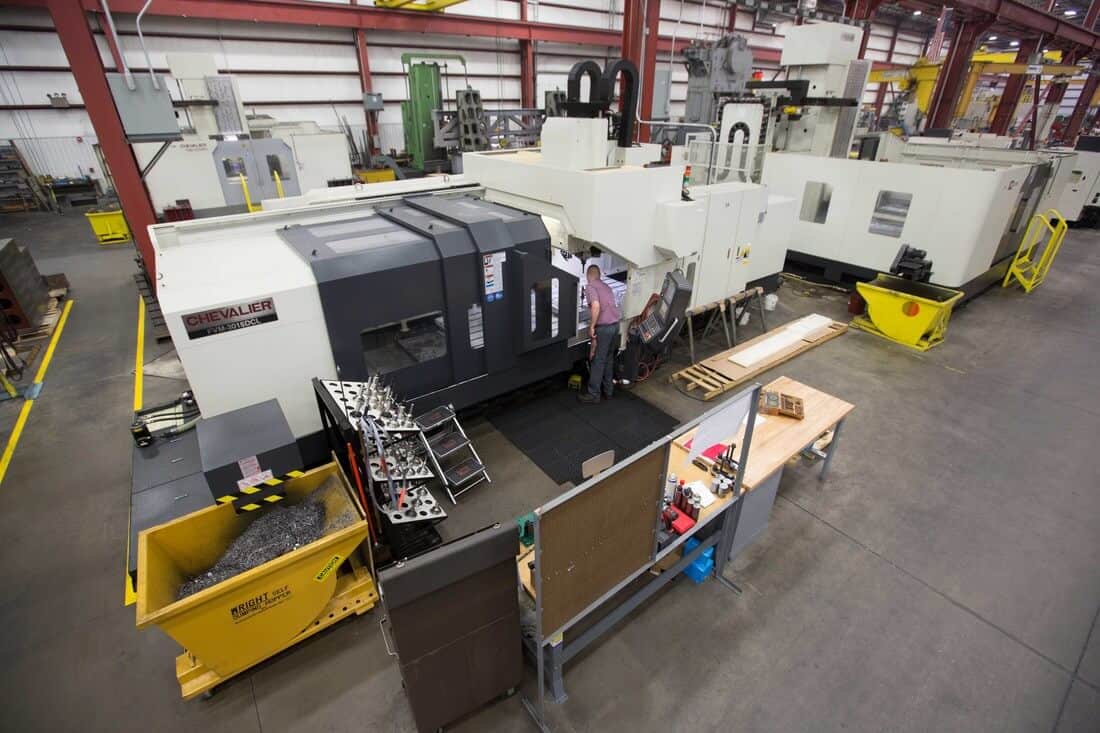

317 Chevalier FVM-4016DCL 60 X 161 30.7 57″ X 161″ 17,640 lbs. 6,000
318 Chevalier QP-3560 35.4 x 60.2 30 34″ X 67″ 5,500 lbs 6,000
319 Chevalier FVM-3016DCL 58.3 X 122 26.7 122″ X 57″ 14,200 lbs. 6,000
320 Chevalier QP2440-L, W/ 4th Axis 24.15 X 40.26 21.6 47.2″ X 23.6″ 1,320 lbs. 10,000
321 Chevalier QP2440-L 24.15 X 40.26 21.6 47.2″ X 23.6″ 1,320 lbs. 10,000
322 Chevalier QP2440-L 24.15 X 40.26 21.6 47.2″ X 23.6″ 1,320 lbs. 10,000
323 Chevalier QP2440-L 24.15 X 40.26 21.6 47.2″ X 23.6″ 1,320 lbs. 10,000
324 DMG Mori – 1100V ECO MILL 43.0 x 22.0 20.1 55″ x 22″ 2,200 lbs 12,000 New (4 axis capability)
325 DMG Mori – 1100V ECO MILL 43.0 x 22.0 20.1 55″ x 22″ 2,200 lbs 12,000 New (4 axis capability)

400 – SURFACE GRINDERS Travel Height Table Wt. Cap.
404 24″ Mattison 24 x 60 21 max.
405 Mitsui 8 x 18 22 max.
406 Mitsui 8 x 18 22 max.
407 Mitsui 8 x 18 22 max.
408 Okamoto DX 16 x 32 15 max.

500 – DRILL PRESS
501 Leland Gifford

600 – RADIAL DRILLS
601 Carlton, 13″ x 6′ T/R

700 – LATHES: Steady rest 12 1/2 dia max Travel Dia. Thru Over saddle Using Cntrs. Spindle Notes
703 Monarch 24 x 150 2″ 16″ dia. 135″ max   Cannot turn metric threads
705 Leblond Makino (Toolroom lathe) 15 x 30 2.25
706 Leblond Makino 19 x 78 3″
708 Yama Seiki GA-3600L 23″ x 48″ 4.12 19.5 dia.

800 – OD/ID GRINDERS Travel Height Table Wt. Cap.
803 Okamoto 12 x 32

900 – BLANCHARD GRINDER Travel Height Table Wt. Cap.
901 Shibaura, 61″ chuck 64″ max. 36″ max. 61″ Dia.     20 1/2″ max height to grind

1000 – JIG BORER Travel Height Table Wt. Cap.
1002 Mitsui Seiki 40 x 30 35″ 50 x 38 2,700

1100 – VTC Chuck Height Max. Dia. Max. Swg.
1102 Yama Seiki EVL-1600 63″ Dia. 4-Jaw 51″ 70.86″ 78.7″
1103 Mori Seiki VL-553II 32″ Dia 3-Jaw 25.9 30.7″ 32.6″

1200 – CNC BORING MILLS “Y” & “X” & “Z” “W” Trav. Table Weight Spindle Notes
1207 4 1/8″ Wotan #B105 50 X 55 X 36 24″ 44 X 55 8,800   any degrees
1213 6″ Wotan #B130S/150 96 X 236 X 48 35″ 78 X 118 66,000   any degrees
1214 5-1/8″ Toshiba BP-130.P40 90 X 155 X 60 27.6″ 70 X 160 55,000 5 1/8 spinlde; 2500 rpm Planer Type
1215 Chevalier FBB-2220RQ 79 X 79 X 59 20 55 X 63 15,400 4 3/8 spindle; 2500 rpm Fourth Axis Rotary
1216 Chevalier FBB-2220RQ 79 X 79 X 59 27.6″ 55 X 63 15,400 5 1/8 spindle; 2500 rpm Fourth Axis Rotary
  Clamp-on Rotary Table     36 x 48     90 degree only
  DeVlieg Rotary Table     20 x 20     90 degree only
  DeVlieg Rotary Table     26 x 26     90 degree only

1300 – MISCELLANEOUS Travel Height Table Wt. Cap.
1301 Electro Arc Disentegrator
1303 Superior Hone
1304 Sunnen Hone
1307 Rush Drill Grinder
  Ramco Parts Washer 31″ X 57″ x 27″dp     2000 lbs.
1308 S & L Tapping Arm
1309 100T Enerpac Press
1310 10,000 lb. Deck Scale
1311 Vibratory Stress Relieve   11,200
1313 Bead Blaster
1314 WIRE EDM: x: 19.700; y: 13.780; z: 11.767   39 x 31 (plate) 3300 lbs   21 degree angle or 2″ offset
between bowls max!
1318 Flex-Arm Tapping Unit

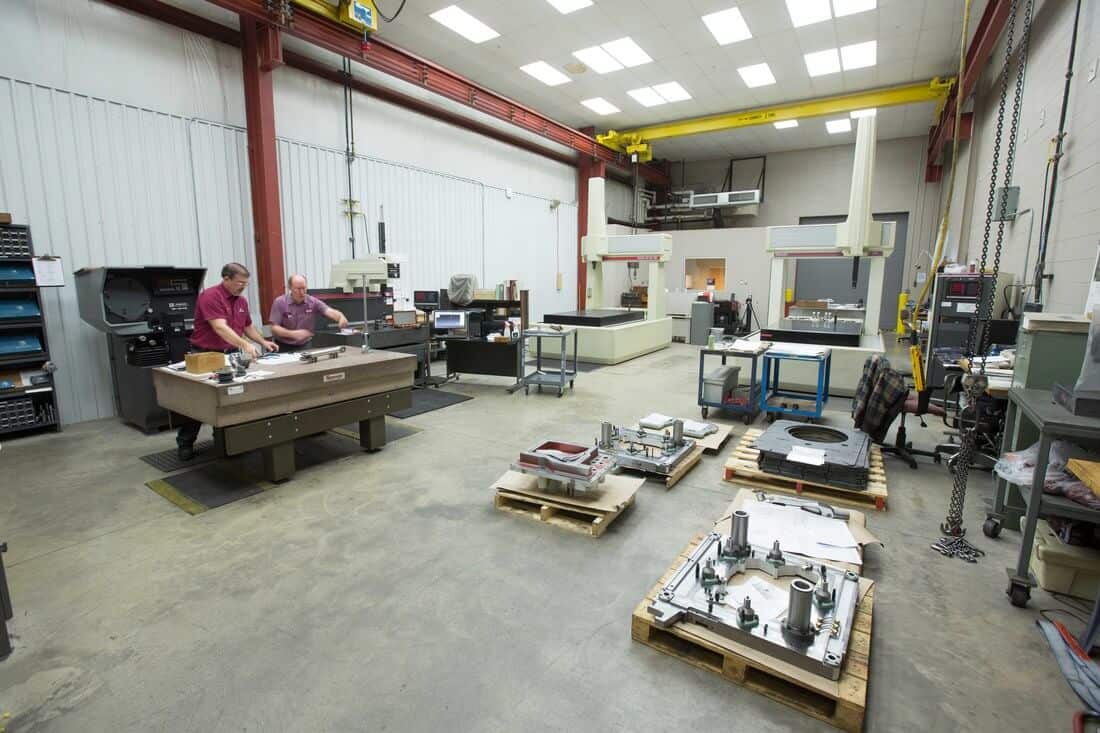

1319 Small CMM, X: 29.5″; Y: 24.5″; Z: 19.5″
1320 Large CMM, X: 48.0″; Y: 80.0″; Z: 38.5″     4000 lbs. MAX   max with probe 90 degrees
34″ max with probe vertical
54″ max width between columns
1324 Large CMM, X:48.0″;Y: 80.0″; Z:38.5″     4000 lbs. MAX   max with probe 90 degrees
34″ max with probe vertical
54″ max width between columns
1321 Laser Tracker
1325 Faro Arm/ Quantum S 4 foot radius reach
  Truck: 96″ wide x 20′ inside;
84″ high in center.		     21,000 lbs.
  Trailer: 102″ wide x 30′;
Legal: 102″ wide, 13’6″ high from road		     14,000 lbs.
  Trailer 38″h from road to bed;
33′ l including tongue.
  Door Openings: Door #1 20′ wide
Door #4 18′ wide
  Maximum capacities:       Crown (standup) 3,000 lbs.
Crown (sit-down) 6,000 lbs.
Hyster 12,000 lbs.
1323 Temptek Portable Chiller           CFD-10A, Digital Scroll Unit, 460/3/60 w/ 3 HP Pump

1400 – Horizontal Machining Centers “Y” & “X” & “Z” Max Part Size   Weight Spindle RPM Notes

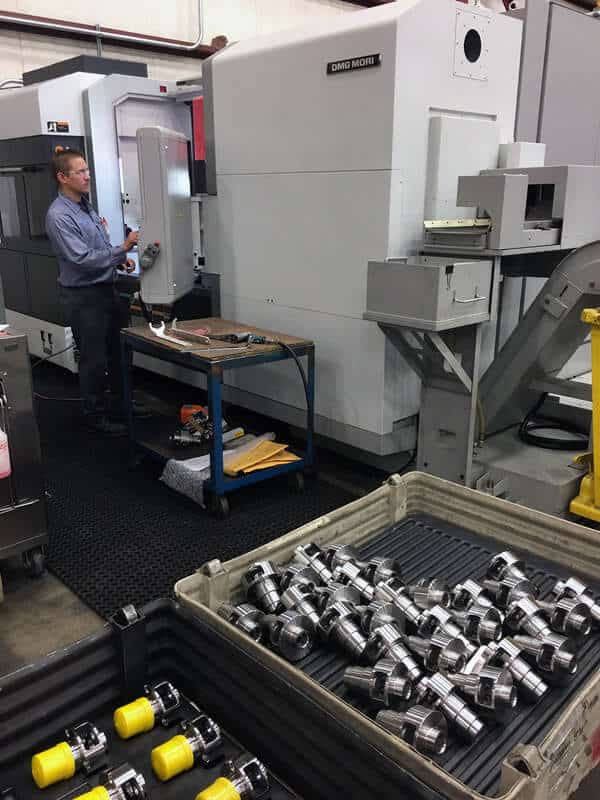

1401 DMG Mori NH8000 47.2 X 55.1 X 53.1 42.1×42.1×47.1 Cube/57″Cylinder.   4,840 8,000 Table Size: 31.5 x 31.5

1500 – Mill Turn “Y” & “X” & “Z” Max Turning
Diameter		 Max Turning
Length		 Bore Spindle RPM Notes
1501 DMG Mori NTX2000 19.5 x +/-4.9 x 61.4 16″ 60.6″ 2.5″ 12,000 5 Axis Cap
